I-Screw Type Hydraulic Quick Coupling

Kunconywa kakhulu embonini yokwakha, okokusebenza kokubhidliza, imishini yezolimo kanye nezinye izinhlelo zokusebenza ezisindayo zezimboni.

Thumela ukuPhenya

Isingeniso Somkhiqizo

ISICELO

Kunconywa kakhulu embonini yokwakha, okokusebenza kokubhidliza, imishini yezolimo kanye nezinye izinhlelo zokusebenza ezisindayo zezimboni.

Izici

ISO14541

Uchungechunge-lokuthi{1}}uxhume ngokuvala kabili{2}}i-valving.

Ihlinzekwa ngezinhlobonhlobo zochungechunge: i-metric (BSP), imicu ye-NPT yangaphakathi kanye nemicu yangaphandle ye-metric enohlobo olulula noma olusindayo.

Indlela yokuxhumana yokuzikhiya ivimbela ukunqanyulwa kwephutha okubangelwa ukudlidliza.

Isistimu yesikulufu ivumela ukuxhumana phakathi kowesilisa noma owesifazane ngaphansi kwengcindezi.

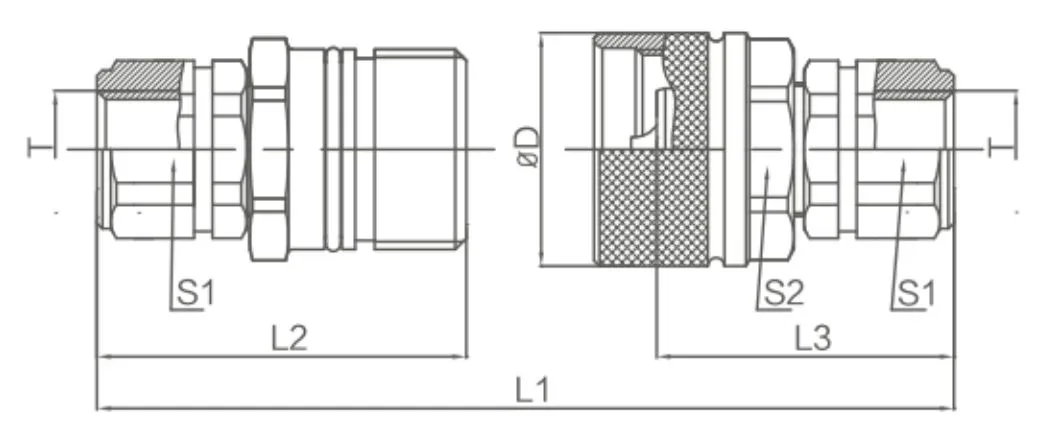

INKCAZO

Ngokuzisholo Usayizi		Ubukhulu Iyasebenza Ingcindezi	Ukugeleza okulinganiselwe	Isilinganiso sokugeleza esiphezulu	I-MIN Burst Pressure			Ukuchitheka koketshezi	Faka esikhundleni se
Ngokuzisholo Usayizi		Ubukhulu Iyasebenza Ingcindezi	Ukugeleza okulinganiselwe	Isilinganiso sokugeleza esiphezulu	Owesilisa	Owesifazane	Kuhlanganiswe		Ngokushesha/Dixon CVV I-DNP PVV3 HOLMBURY HS KSG3 STUCCHI VD
QLEAD	ISO	ibha	L/mm	L/mm	ibha	ibha	ibha	cc
04	6.3	450	12	17	1900	2700	2500	0.8
06	10	400	23	46	1300	1500	1800	1.4
08	12.5	400	45	90	1200	1500	1400	2.7
12	20	300	106	190	1000	1300	1400	9.3
16	25	300	189	280	1000	1300	1400	16
20	31.5	300	288	480	1000	1000	1000	30

KSG3 Uchungechunge Usuku Lobuchwepheshe

Ngokuzisholo Usayizi		Ubukhulu Iyasebenza Ingcindezi	Ukugeleza okulinganiselwe	Isilinganiso sokugeleza esiphezulu	I-MIN Burst Pressure			Ukuchitheka koketshezi	Faka esikhundleni se
Ngokuzisholo Usayizi		Ubukhulu Iyasebenza Ingcindezi	Ukugeleza okulinganiselwe	Isilinganiso sokugeleza esiphezulu	Owesilisa	Owesifazane	Kuhlanganiswe		Dnp VVV1 I-VVS HOLMBURY PTC esheshayo
QLEAD	ISO	ibha	L/mm	L/mm	ibha	ibha	ibha	cc
06	10	600	18	17	3000	3000	3000	1.9
08	12.5	600	23	46	2500	2700	2200	2.7
12	20	500	45	90	2400	2600	2100	9.3
16	25	460	106	190	2300	2600	2000	16
20	31.5	360	189	280	1500	1500	1500	30
24	40	360	300	480	1200	1500	1500	54

KSG6 Uchungechunge Usuku Lobuchwepheshe

Ngokuzisholo Usayizi		Ubukhulu Iyasebenza Ingcindezi	Ukugeleza okulinganiselwe	Isilinganiso sokugeleza esiphezulu	I-MIN Burst Pressure			Ukuchitheka koketshezi	Faka esikhundleni se
Ngokuzisholo Usayizi		Ubukhulu Iyasebenza Ingcindezi	Ukugeleza okulinganiselwe	Isilinganiso sokugeleza esiphezulu	Owesilisa	Owesifazane	Kuhlanganiswe		Parker6600 I-DNP PAV Inani eliphakeme kakhulu lama-ANV Holmbury IA Dixon K I-Stucchi BIR I-Eaton 5600 I-Aeroquip FD56 Thatha i-Tite 61 Voswinkel IA I-Safeway S56 I-Tomco A5600 Hansen HA15000
QLEAD	ISO	ibha	L/mm	L/mm	ibha	ibha	ibha	cc
04	6.3	350	12	17	1500	1700	1400	0.5
06	10	350	23	46	1400	1500	1500	1.9
08	12.5	250	45	90	1000	1400	1200	2.7
12	20	250	106	190	900	1500	1000	9.3
16	25	250	189	280	1300	1300	1200	16
20	31.5	200	288	480	1100	850	1000	30
24	40	190	379	757	800	800	820	54
32	50	160	757	1000	650	960	1000	120

Isimo Semboni

FAQ

1.Q: Sekuyisikhathi esingakanani imboni yakho ihlanganyela ekukhiqizeni imishini yezimboni kanye nezingxenye zemishini?

A: Imboni yethu ineminyaka engaphezu kwe-15 yokuhlangenwe nakho kokukhiqiza imishini yezimboni (njengemishini yokuhlanza i-silo) nezingxenye zemishini (njengama-hydraulic motors namajoyinti). Siqongelele ubuchwepheshe bokukhiqiza obuvuthiwe kanye nezinhlelo eziqinile zokulawula ikhwalithi phakathi nalesi sikhathi.

I-2.Q: Ingakanani indawo ephelele yefektri yakho? Ihlukaniswe kanjani iworkshop?

A: Indawo ephelele yefekthri yethu imayelana namamitha-skwele angama-25,000, kufaka phakathi ama-square metres ayi-18,000 ama-workshops okukhiqiza. Amashabhu ahlukaniswe abe yizindawo ezi-5 zokusebenza: indawo yokusebenzela yokuhlanganisa imishini, ishabhu yokucubungula izingxenye, ishabhu yokushisela, ishabhu yokudweba, kanye neshabhu yokuhlola ikhwalithi, ukuqinisekisa inqubo yokukhiqiza ehlelekile.

3.Q: Ingabe amalunga akho angasetshenziswa-ezindaweni zokushisa eziphezulu? Kuyini ukumelana nezinga lokushisa okuphezulu?

A: Yebo. Ukumelana nezinga lokushisa kuncike ezintweni ezibonakalayo kanye nokubeka uphawu. Amalungu ensimbi ye-Carbon anezimpawu ze-FKM angakwazi ukumelana nokushisa okuphezulu kwama-degree angu-200; amalunga ensimbi engagqwali.
